- Complete Axle Sets >Dana Front and Rear Ultimate 60 Axle Set w/ Beadlock Wheels Package - JT/JL

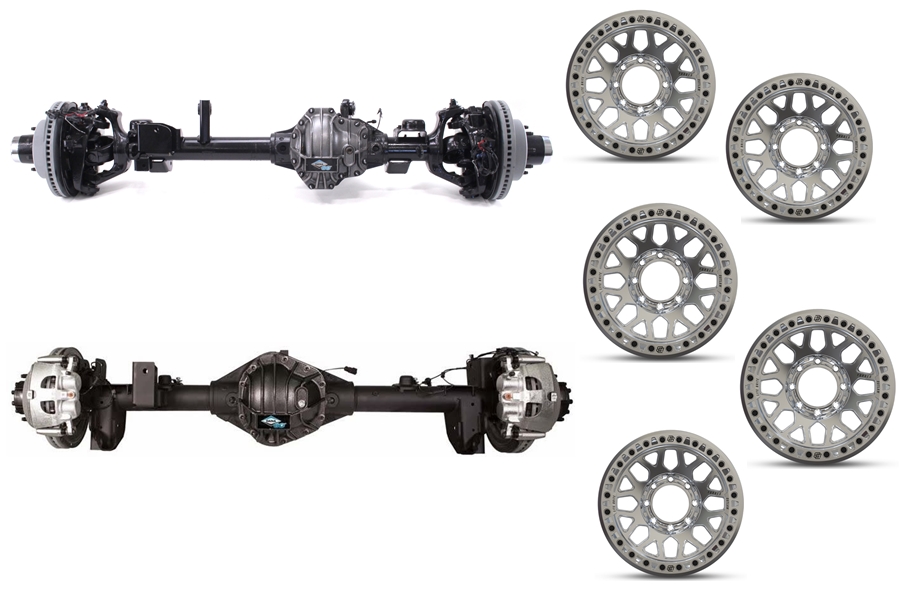

Dana Front and Rear Ultimate 60 Axle Set w/ Beadlock Wheels Package
JT/JL
Features & Product Details

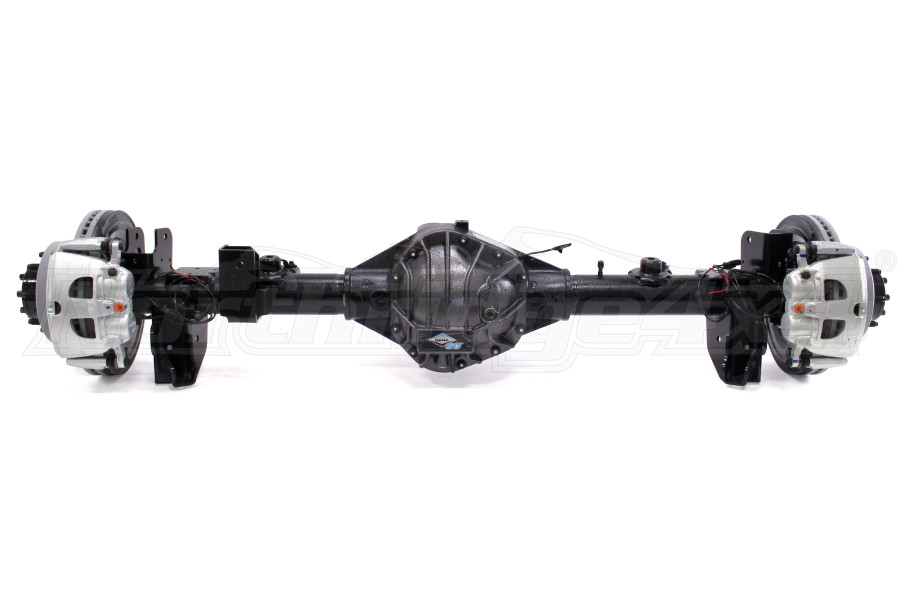

UD60 Front Axle
The Dana 60 Ultimate front axle comes equipped with steel axle shafts which are instrumental when it comes to travels and expeditions in the Off Road pathways. It can withstand and provide power for the rocky and mud patches to ensure the strength of the vehicle is kept constant. The U-joints that come with the Dana 60 Ultimate front axle are structured to provide optimal operational capacity for lifted cars that have been customized with larger wheels and increased ground clearance.

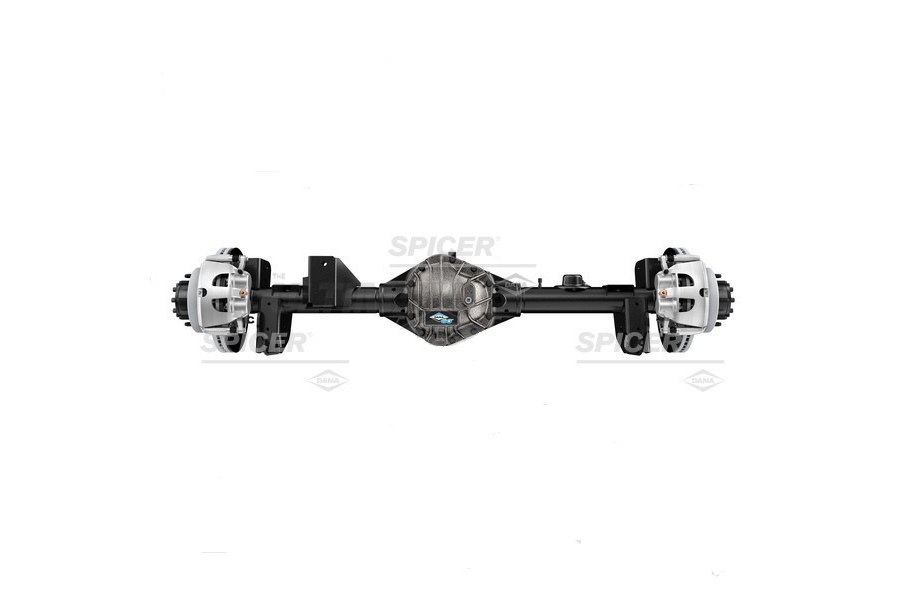

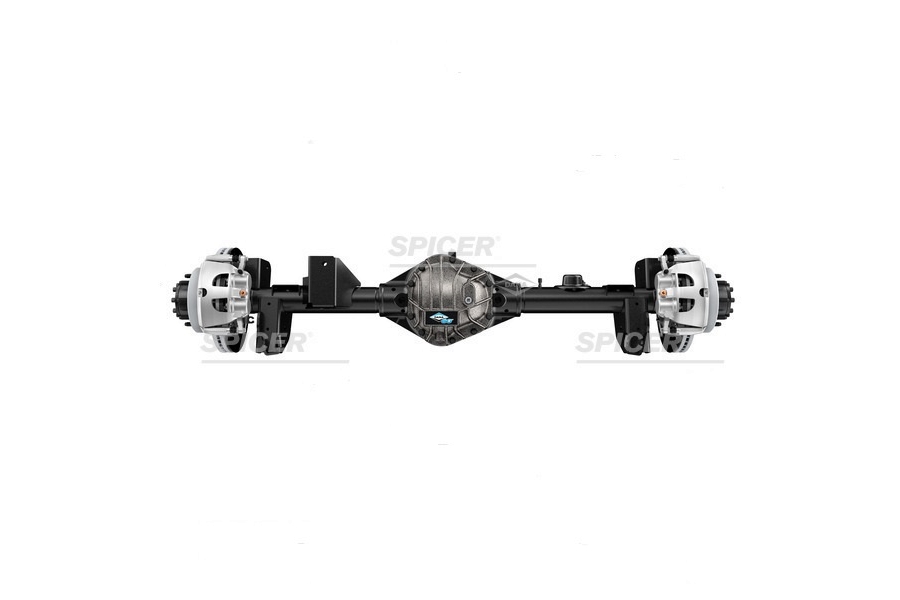

UD60 Rear Axle
For years, hardcore off-roaders have been modifying their Dana 60 axles for even better performance over the rocks, across the sand, and through the mud. Here at Dana, we are paying attention. We have incorporated many new upgrades that off-roaders demand, making the Ultimate Dana 60 axle the make it the biggest, strongest Dana 60 axle we have ever built. You get a direct-fit, bolt-in solution for your Jeep, plus unparalleled technology, strength and durability from having Spicer inside.
Lite Brite Outlaw Beadlock Wheel
Not all FORGED wheels are made equal. Unmatched value for highest load rating and features in its class.
Comes equipped with steel axle shafts which are instrumental when it comes to travels and expeditions in the Off Road pathways. It can withstand and provide power for the rocky and mud patches to ensure the strength of the vehicle is kept constant. The U-joints that come with the Dana 60 Ultimate front axle 4.88 are structured to provide optimal operational capacity for lifted cars that have been customized with larger wheels and increased ground clearance.
NOTE: THIS AXLE CONTAINS THE Eaton E-LOCKER
The Dana 60 Ultimate front axle 5.38 comes equipped with steel axle shafts which are instrumental when it comes to travels and expeditions in the Off Road pathways. It can withstand and provide power for the rocky and mud patches to ensure the strength of the vehicle is kept constant. The U-joints that come with the Dana 60 Ultimate front axle 5.38 are structured to provide optimal operational capacity for lifted cars that have been customized with larger wheels and increased ground clearance.
NOTE: THIS AXLE CONTAINS THE Eaton E-LOCKER
For years, hardcore off-roaders have been modifying their Dana 60 axles for even better performance over the rocks, across the sand, and through the mud. Here at Dana, we are paying attention. We have incorporated many new upgrades that off-roaders demand making the Ultimate Dana 60 axle the make it the biggest, strongest Dana 60 axle we have ever built. You get a direct-fit, bolt-in solution for your Jeep Wrangler JL, plus unparalleled technology, strength and durability from having Spicer inside. Features include full-float design for full on strength which delivers greater load carrying ability.
Spicer 35 spline SAE-4340 chromoly axle shafts ensure maximum strength and durability.
High strength, heavy gauge brackets. Selectable E-Locker. Heavy duty 8 x 6.5" wheel bolt pattern. Nodular iron diff cover with protective ribbing and raised fill plug for increased fill capacity for increased pinion angles. Genuine Made in the USA Spicer 9.75" (248 mm) ring and pinion gear that have been precision heat treated for optimal hardness, shot peened for double fatigue life and lapped to reduce noise and heat. Axle tubes are 3.5" diameter with .390" wall thickness. Includes upgraded heavy-duty brakes with plug and play ABS system. Massive vented rotors (358mm O.D.) and dual piston calipers provide optimal braking power and cooling.
More Jeep Front Axles
More Jeep JT Axles
More Jeep JT Axles
NOTE: THIS AXLE CONTAINS THE Eaton E-LOCKER
More Jeep Dana 60 Axles
The Dana 60 Ultimate rear axle 4.88 comes equipped with steel axle shafts which are instrumental when it comes to travels and expeditions in the Off Road pathways. It can withstand and provide power for the rocky and mud patches to ensure the strength of the vehicle is kept constant. The U-joints that come with the Dana 60 Ultimate front axle 4.88 are structured to provide optimal operational capacity for lifted cars that have been customized with larger wheels and increased ground clearance.
Specifications:
Axle Model DANA 60
Gear Ratio 4.88
Traction Device Eaton Electronic Locker
Mounting Bracket Included Y
Brakes Included Y
Axle Shaft U Joint Series SPL70
Axle Shaft Material Chromoly
Hub Surface to Hub Surface(IN) 69.000
Inner Axle Shaft Spline Count 35
Outer Axle Spline Count 35
Wheel Bolt Pattern 8 X 6.5
End Yoke Style Half Round
Drive Shaft U Joint Series 1350
Vehicle Location Rear
Weight 615.09 LB
Made in United States
NOTE: Will Not Work with OE drag link, steering stabilizer, tie rod or mounting brackets.
More Jeep Dana 60 Axles, and Components
For years, hardcore off-roaders have been modifying their Dana 60 axles for even better performance over the rocks, across the sand, and through the mud. Here at Dana, we are paying attention. We have incorporated many new upgrades that off-roaders demand making the Ultimate Dana 60 axle the make it the biggest, strongest Dana 60 axle we have ever built. You get a direct-fit, bolt-in solution for your Jeep Wrangler JL, plus unparalleled technology, strength and durability from having Spicer inside. Features include full-float design for full on strength which delivers greater load carrying ability. Spicer 35 spline SAE-4340 chromoly axle shafts ensure maximum strength and durability. High strength, heavy gauge brackets. Selectable E-Locker. Heavy duty 8 x 6.5" wheel bolt pattern. Nodular iron diff cover with protective ribbing and raised fill plug for increased fill capacity for increased pinion angles. Genuine Made in the USA Spicer 9.75" (248 mm) ring and pinion gear that have been precision heat treated for optimal hardness, shot peened for double fatigue life and lapped to reduce noise and heat. Axle tubes are 3.5" diameter with .390" wall thickness. Includes upgraded heavy-duty brakes with plug and play ABS system. Massive vented rotors (358mm O.D.) and dual piston calipers provide optimal braking power and cooling.
This parking brake cable has been engineered and tested to match the fit, function and performance of the original brake cable on specific vehicles. It features a corrosion-resistant design and durable materials for added strength and longevity.
