- Track Bar Brackets >Steer Smarts Yeti XD Track Bar Relocation Bracket - JT/JL

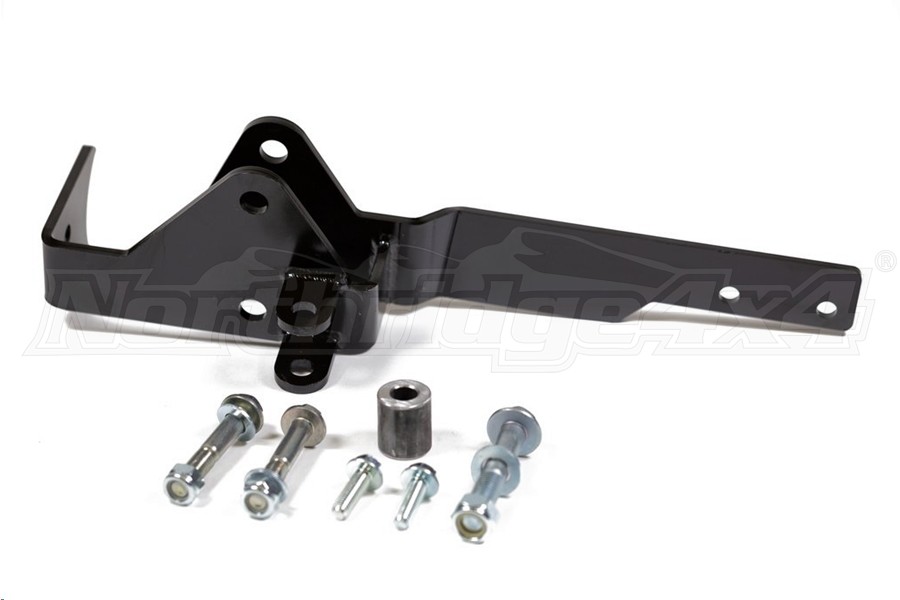

Steer Smarts Yeti XD Track Bar Relocation Bracket
JT/JL
Features & Product Details
The Steer Smarts Yeti XD Track Bar Relocation Bracket Offers Clearance to Run Other Chassis Components
If you are running other heavy duty suspension components on your Jeep Wrangler JL or Jeep Gladiator JT build, then you might not have the space or clearance to run an aftermarket track bar as well. Luckily, there is the Steer Smarts Yeti XD Track Bar Relocation Bracket that is designed to correct the geometry of the track bar on Wranglers or Gladiators that are equipped with a top-mounted drag link. This easy bolt-on solution will ensure that the track bar and top mounted drag link are proper alignment and aid in the reduction of bump steer.1/4" Steel Construction with E-Coat

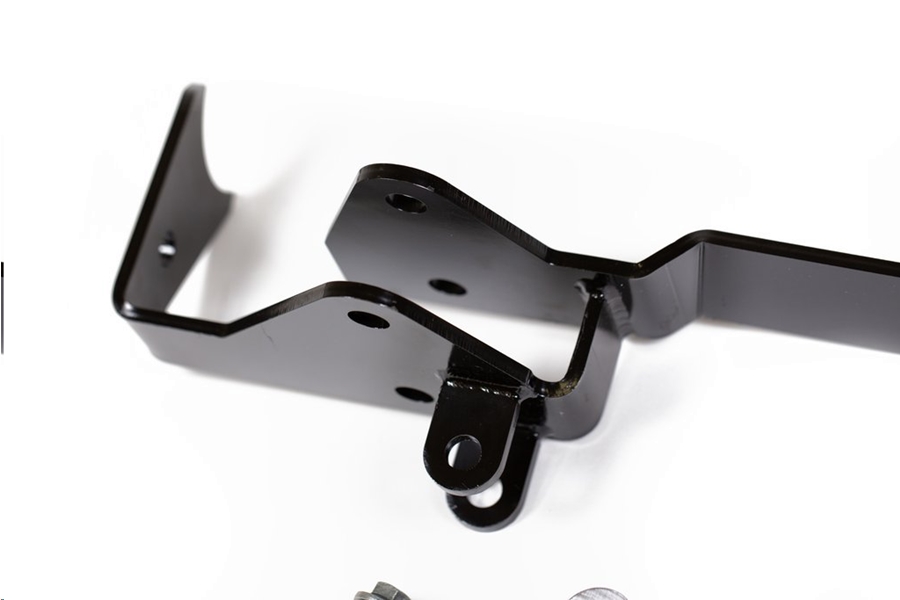

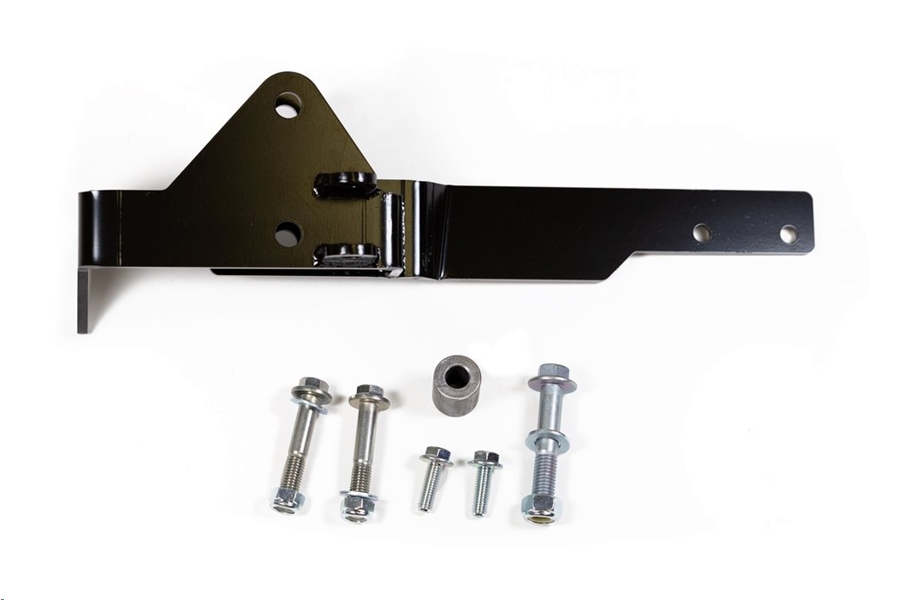

The Steer Smarts Yeti XD Track Bar Relocation Bracket is fabricated from 1/4" steel and E-coated for maximum durability. Each kit includes all necessary hardware and installs in just minutes with basic hand tools. The easy, bolt-on installation can be completed DIY or by a professional. With correct application, you should be ableto have the proper clearance to run other aftermarket suspension components without interference. To ensure you are getting highest quality product and engineering possible, Steer Smarts manufactures this product in the USA.Fitment:
Important Note: The YETI XD Track Bar relocation bracket fits all left-hand drive 2018+ JL/JLU Wrangler models equipped with 4.5" or greater lifts that have checked clearances and appropriately bump stopped the vehicle.
Frequently Asked Questions (FAQs)
Q: Why would I need a track bar relocation bracket?
A: Lifting your Jeep increases the rear track bar angle, which can cause unwanted lateral axle movement and handling instability. This bracket raises the mounting point to bring the track bar angle closer to stock, which helps restore ride quality, articulation, and suspension geometry.
Q: Is this a bolt-on upgrade?A: Yes. It installs using existing mounting holes and clamps around the axle tube, with no cutting or welding required. All hardware is included for a straightforward installation.
Q: Do I still need an adjustable rear track bar with this bracket?A: While the bracket corrects track bar angle, an adjustable rear track bar is still recommended to properly center the axle after lifting the vehicle.
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
-
Q: Raise height TheGuyMatt3 years ago
Which bracket raises the track bar more, Steer Smarts or Synergy? I currently have the Steer Smarts, but it is still a little too low for my setup causing bump steer.
-
-
0 of
1 people found the
following answer helpful
A: I would go with Steer Smarts. Here's a note about this from the mfg; Important Note: The YETI XD Track Bar relocation bracket fits all left-hand drive 2018+ JL/JLU Wrangler models equipped with 4.5" or greater lifts that have checked clearances and appropriately bump stopped the vehicle.
Northridge Chris @ Northridge4x4 3 years ago
-
0 of
1 people found the
following answer helpful
-
Q: Going with Reid racing flipped high street knuckles. Draconianwinter 3 years ago
Well this lift the track bar high enough to keep it in line with the drag link? According to the info the drag link will be raised 4 inches
-
-
0 of
0 people found the
following answer helpful
A: It will definitely help, but will not raise it four inches, it will be closer to two inches.
Northridge Chris @ Northridge4x4 3 years ago
-
0 of
0 people found the
following answer helpful
-
Q: Sway bar end-links MGH4 years ago
I purchased a synergy track bar relocation bracket. It is incompatiable with my current setup due to the relocation of the front swaybar links. (I have a no-limts RockKrawler sway bar links). This setup looks different and I am hoping that it is a better fit. Does it maintain the factory sway bar endlink location?
-
-
0 of
0 people found the
following answer helpful
A: Yes, maintains the factory sway bar endlink location.
Northridge Chris @ Northridge4x4 4 years ago
-
0 of
0 people found the
following answer helpful
