Next Venture Motorsports Rear Diff Skid & Pinion Guard M220 - Bare Metal - JL/JT

Exterior
Armor
Skid Plates >Next Venture Motorsports Rear Diff Skid & Pinion Guard M220 - Bare Metal - JL/JT

Next Venture Motorsports Rear Diff Skid & Pinion Guard M220 - Bare Metal

Name: Next Venture Motorsports Rear Diff Skid & Pinion Guard M220 - Bare Metal
Brand: Next Venture Motorsports
SKU: NV-JLT-RDS220
Price: 369.99 USD
Availability: OutOfStock

JL/JT

★★★★★

()
Write a Review | Q&A

Part # NV-JLT-RDS220

$369.99

Quantity

Out of stockProduct will ship from manufacturer, average time to ship: 30 business days

Qualifies for
free shipping!

Does not fit your
2010 Toyota Tacoma Base

You will earn Reward Points with this Purchase.

This part is superseded by NWVNV-JL-RDS220

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The JL/ JT Rear Diff Skid (RDS) is a heavy-duty diff skid designed to protect the vulnerable ribs on the JL/ JT rear differential and provides a smooth surface for you to slide over obstacles.

The JL Wrangler/ JT axles are a fantastic upgrade over the previous models. However, their shape is not ideal for rock crawling. The thin, exposed lip on the back of the housing is a rock grabber. It also creates a potential risk of cracking a housing or fluid loss if hit hard enough or worn through over time.

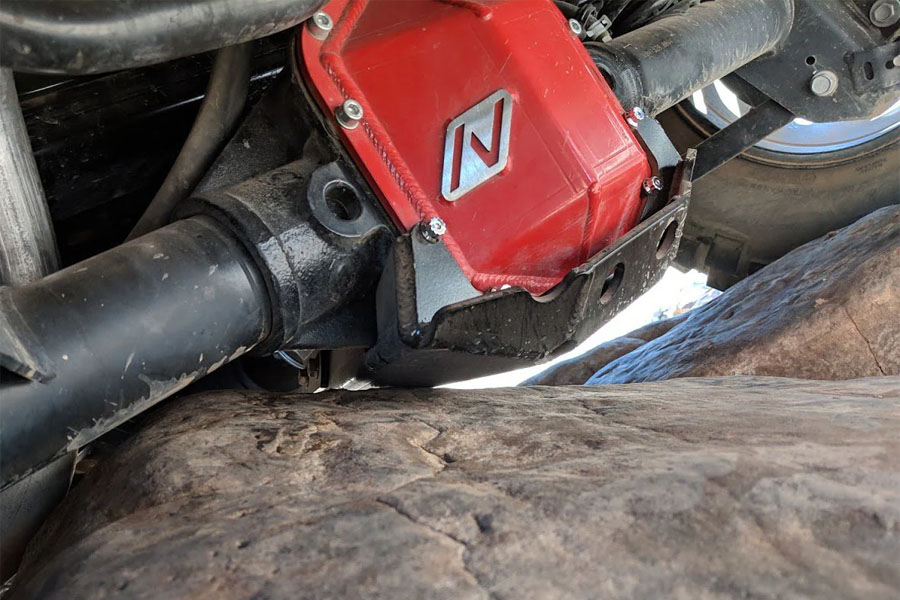

As any rock crawling enthusiast will tell you, every inch of ground clearance matters. Anything on your Jeep's underside that can be smooth should be, or it's likely to catch on an obstacle. The JL/ JT Rear Diff Skid (RDS) is CAD designed with 3D modeling to retain every bit of possible ground clearance for critical protection you need on the trail. Additionally, you gain clearance to any adjacent skid plates.

If you find yourself watching the Lite Brite YouTube channel, and come across their 2019 King of the Hammer’s videos… this is one of the many pieces of metal you will hear banging against — scratch that, breaking — some of the rocks in Johnson Valley underneath their JL.

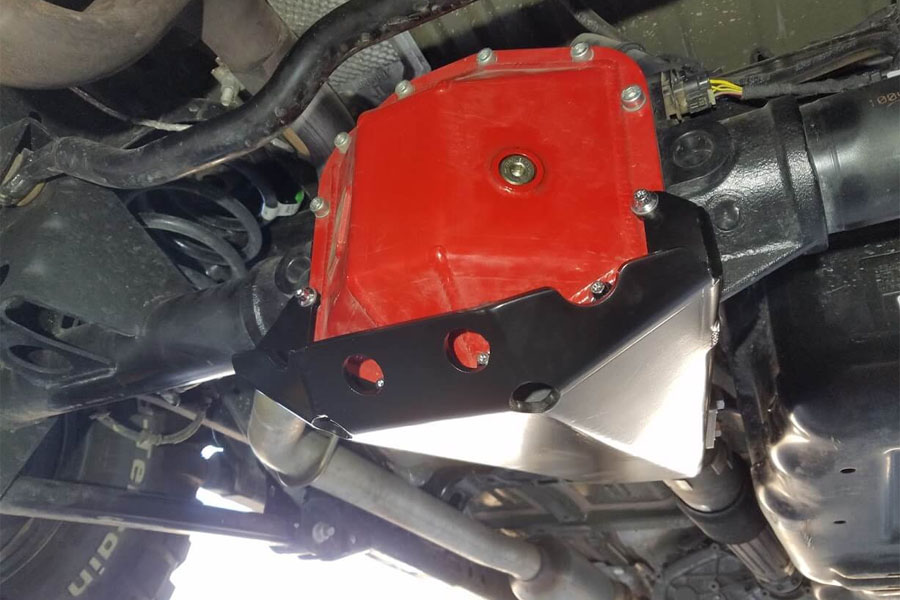

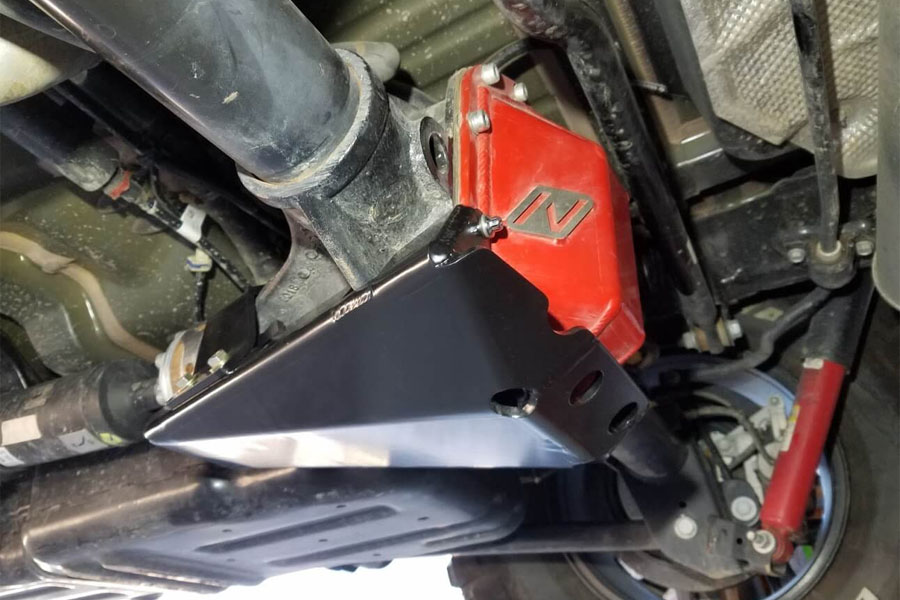

Next Venture Motorsports build the JL/ JT Rear Diff Skid (RDS) from a combination of 1/4" and 3/8" thick steel. This diff skid ties into multiple locations on the differential flange, as well as clamping tight to the snout of the differential. As a result, you will distribute any force -- such as the weight of the vehicle on a rock -- over a much larger area. This skid also extends your coverage to the pinion seal and yoke/flange where the rear driveshaft attaches.

This skid fits both the JL and JT rear M220 Differentials. Installation with a factory cover is possible but will require a shim/spacer to account for the factory cover's thinner material.

Note: *This skid is designed and recommended for use with Next Venture's HD JL/ JT Rear Diff Cover * It has been successfully test-fit with TMR, CavFab, Ballistic, Under Cover Fab, and Motobilt Diff Covers by customers. It will *not* work with the Spicer aftermarket covers due to the shape/fin features. Incompatibility has also been found with G2, MetalCloak, Ox Locker, ARB, and Artec/Yukon covers.

NOTE: Product ships Bare Metal. Images show Powder Coat - Texture Black option for representation

Included with purchase:

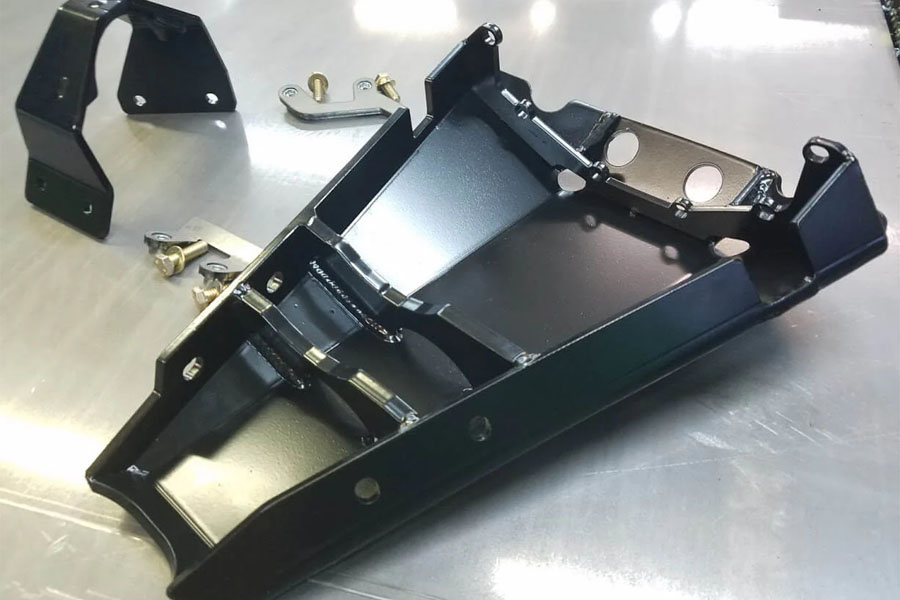

(1) Rear Differential Skid Plate with Top Clamp

(2) Hardware Sticks with hardware/ bolts

(12) M8 Allen Head Cap Screws Bolts Class 8.8 (enough for matching hardware all the way around the rear diff cover)

Additional Details

Products are designed and fabricated to fit vehicles that have varying tolerances from the factory, minor hand fitting may be required.

Products are shipped bare metal unless otherwise specified by the customer. Bare metal products may have scratches or surface imperfections as a result of raw material handling, manufacturing, and fabrication. However, these imperfections are easily covered up with a textured powder coat finish. Additional finishing, sanding, and prep work may be required if you wish to also have them finished with a smooth powder coat or paint.

Projected lead times are estimates only, and are subject to changes due to production realities, including material and labor availability and sudden variability in order volume. Lead times are not guaranteed, but we do guarantee that we are hard at work trying to get the best product we can produce and into the customers’ hands as quickly as possible.

All Next Venture Motorsports products are laser cut, CNC formed, and hand-weld with pride in the USA. We are a Colorado-based business, and welcome visitors by appointment at the Grand Junction, CO headquarters. We hope to see you out there on the trail soon!
