Method Race Wheels 105-108 Series 5x5 Beadlock Wheel Package

The all-new Method Beadlock 108 is an evolution in wheel design that features the proven strength and durability of beadlock technology combined with Method's patented Bead Grip technology.
The 108 Beadlock has a 4,000 lb. load rating tested for use in the harshest conditions and toughest terrain.

Features & Benefits:

Solid A356 aluminum with T6 heat treatment construction

Tough 9 spoke design with debossed METHOD logo on spoke

Forged 6061 aluminum V5 beadlock ring

Patented Bead Grip® bead seats on inner lip

3/8” Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Snap-on center cap with embossed METHOD logo

Push through cap with embossed METHOD logo for 8 lug applications

Hub centric fitments for common applications

Super strong 4000 lbs. load ratings

4,000lb load rating tested for use on tires up to 40" in size

Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating

Specifications

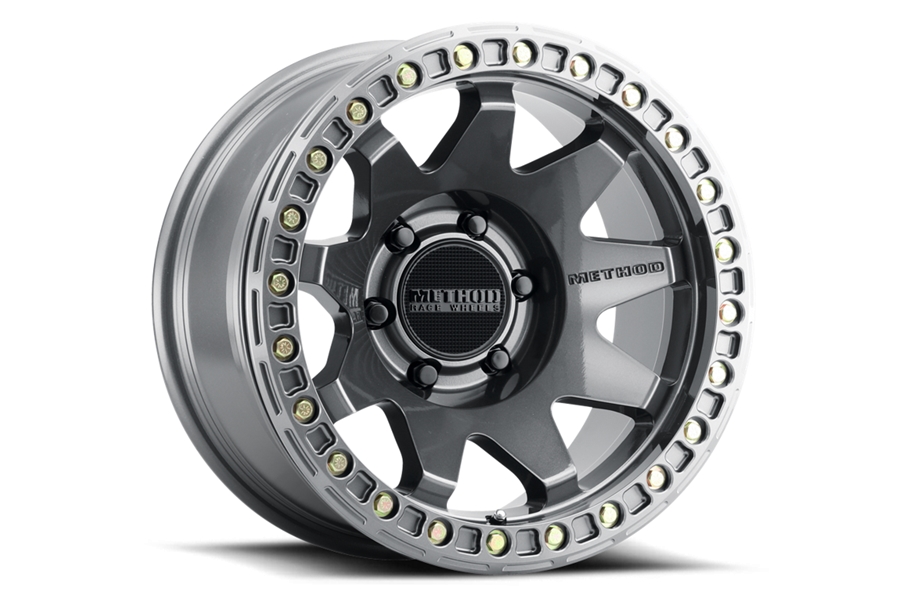

Finish – Gloss Titanium

Size – 17 x 9

Bolt Pattern – 5 x 5

Backspacing – 3.50in

Offset – -44mm

Hub Bore – 71.50mm

Max Load – 4000lbs

Weight – 35.9 lbs.

The all-new Method Beadlock 108 is an evolution in wheel design that features the proven strength and durability of beadlock technology combined with Method's patented Bead Grip technology.
The 108 Beadlock has a 4,000 lb. load rating tested for use in the harshest conditions and toughest terrain.

Features & Benefits:

Solid A356 aluminum with T6 heat treatment construction

Tough 9 spoke design with debossed METHOD logo on spoke

Forged 6061 aluminum V5 beadlock ring

Patented Bead Grip® bead seats on inner lip

3/8” Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Snap-on center cap with embossed METHOD logo

Push through cap with embossed METHOD logo for 8 lug applications

Hub centric fitments for common applications

Super strong 4000 lbs. load ratings

4,000lb load rating tested for use on tires up to 40" in size

Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating

Specifications

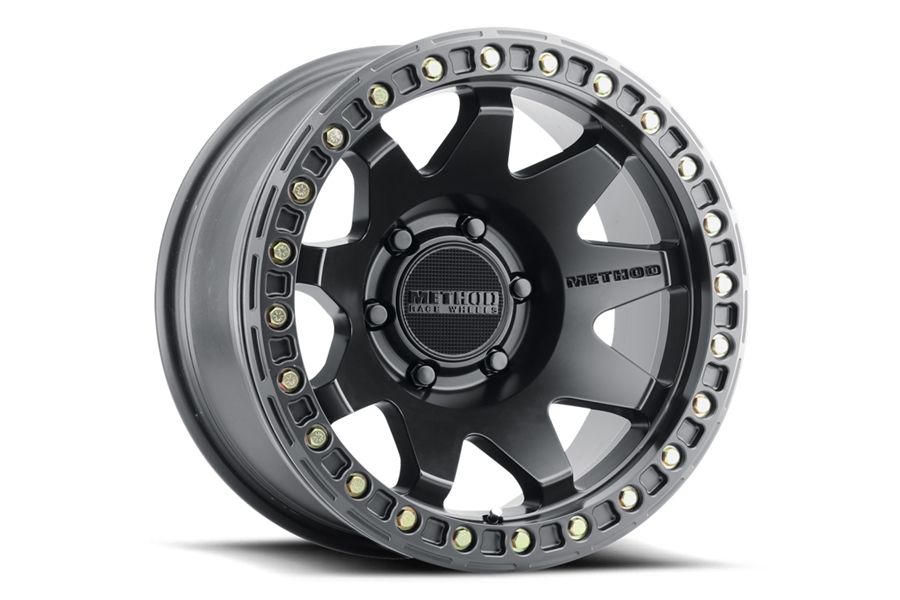

Finish – Matte Black

Size – 17 x 9

Bolt Pattern – 5 x 5

Backspacing – 3.50in

Offset – -44mm

Hub Bore – 71.50mm

Max Load – 4000lbs

Weight – 35.9 lbs.

Note: image shows 6 lug nuts, actual product contains 5.

Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 Features:

Forged 6061 aluminum ring

53% thicker than original 101 beadlock ring to reduce deflection and increase overall durability

Excess material removed for weight reduction

Recessed hardware has 360 degree protection to eliminate sheared bolts on rocks or other obstacles on the trail

17% wider bead seat to accommodate larger tires

The Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 can Tackle the Toughest of Terrains The ultimate wheel for the Jeep Wrangler JK/JL and Jeep Gladiator JT is here. The Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 is built to conquer the most difficult trails with ease. It features a durable, lightweight design with a beadlock that keeps your tire on the wheel at any PSI. You can keep track of your pressure and adjust it accordingly with your TPMS systems that will still be able to be utilized with this wheel. The lightweight design keeps the additional weight to a minimum as to not cause any drag or sluggish movement. Although it is lightweight, this wheel has a 17% wider bead seat to that allows for accommodating larger tires. No-Frills Split Six-Spoke Face Design Each Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 is optimized for the Jeep platform. The 106 Beadlock combines clean and modern styling with unrivaled off road functionality. The no-frills split six-spoke face design has concave for days thanks to a 3.5” backspace (-44mm offset) on a 17x9 wheel. Each wheel has a Method logo debossed into the wheel at the end of one of the spokes to let everyone know you have invested into a quality off-road wheel. The Beadlock 106 has the same beefy inner-lip design as our 101 Beadlock that has conquered everything from Baja to King of the Hammers.

Fitment:

Jeep Wrangler JK

Jeep Wrangler JL

Jeep Wrangler JT

Important Note: Image Shown is the 6 Lug Version

Optimized for the Jeep platform, the 106 Beadlock combines clean and modern styling with unrivaled off road functionality. The no-frills split six-spoke face design has concave for days thanks to a 3.5” backspace (-44mm offset) on a 17x9 wheel. A Method logo is debossed into the wheel at the end of one of the spokes. The 106 has the same beefy inner-lip design as our 101 Beadlock that has conquered everything from Baja to King of the Hammers.

Next up there’s the mighty v.3 ring. This new piece has some serious performance to back up the killer good looks. Here’s what you get:

Forged 6061 aluminum ring

53% thicker than original 101 beadlock ring to reduce deflection and increase overall durability

Excess material removed for weight reduction

Recessed hardware has 360 degree protection to eliminate sheared bolts on rocks or other obstacles on the trail

17% wider bead seat to accommodate larger tires



The Method Race Wheels 106 beadlock wheels are the perfect addition for those rock crawling, desert pre-running or anywhere your off-road vehicle can possibly go. Whether it’s for a Jeep Rubicon, Ford Raptor or Toyota Tacoma, these beadlock wheels will get you where you need to go fast and in style.

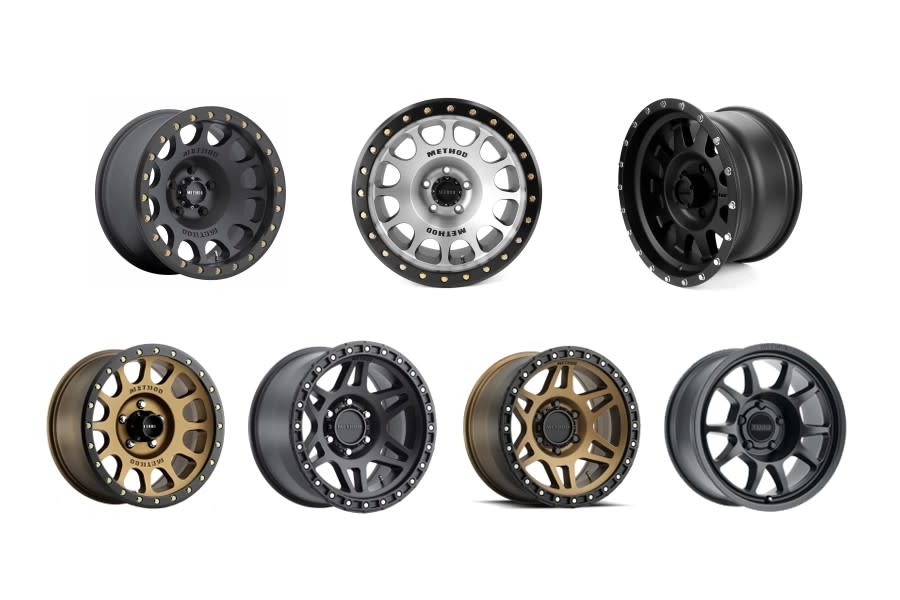

More Non-Beadlock and Beadlock options.



Features

Solid A356 aluminum with T6 heat treatment construction

Tough 6 windowed point design with debossed METHOD logos

Forged 6061 aluminum V.3 beadlock ring is 53% thicker and reduces deflection

Reinforced inner lip provides extreme strength and durability

Extra wide bead seat is 17% bigger to accommodate largest tires

Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Recessed hardware has 360-degree protection to prevent bolt head shearing

Bolt-on center cap with embossed METHOD logo

Hub centric fitments for common applications

Super strong 3600 lbs. load rating



Specifications

Wheel Diameter (in): 17

Wheel Width: 9.0

Bolt Pattern: 5x5

Offset (mm): -44

Hub Bore (mm): 71.50

Backside Spacing (in): 3.50

Wheel Weight (LBS): 35.1

Max Load (LBS): 3600

Note: Images show 6 lug nuts, actual product contains 5.

Finish - Gold

Size - 17x9

Bolt Pattern - 5x5

Offset - -38mm

Backspacing - 3.50in

Hub Bore - 71.50mm

Weight - 33.7lbs

Load Rating - 3600lbs

Note: Image shows 6 lug nuts, product contains 5.

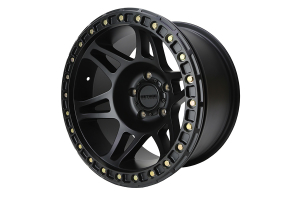

Method 105 Beadlock Matte Black Wheel Features:

MR105 Beadlock Series Wheel

True & functional bead lock ring

Matte black finish

T6 Heat Treated Solid A356 aluminum construction

-38mm Offset

Sold individually

MR105 Beadlock Series Off-Road Wheel Method Race Wheels has redefined the Method brand focusing on designing lighter, stronger, and faster performing wheels. Their 105 Beadlock Series Matte Black Wheel features a unique concave center with a forged black beadlock ring to provide impressive off-road capabilities and killer good looks to your overland warrior. This method wheel is also completed with a matte black finish for an aggressive appearance that will be sure to turn some heads. Likewise, a durable zinc coated is applied to enure this wheel is tough enough to stand up against the hazards of everyday driving applications. High-Quality One-Piece Construction Forged from solid A356 aluminum which is T6 heat-treated for additional strength, this one-piece wheel will be able to endure even the most extreme driving conditions. Moreover, the functional beadlock ring was incorporated to help keep the weight of the wheel down while providing impressive strength overall. This 17x9 wheel will be sure to take you further so you can explore more.

More Bead Lock Wheels

The Method Race MR105 Wheels certainly have an aggressive look with a black powder-coated forged 6061 outer ring and they are fabricated with Grade 8 Zinc plated mounting hardware. These wheels are TPMS compatible.

The bolt pattern is 5 on 5, and the offset is -38MM. These wheels are lightweight, strong, and will be able to host your preferred high performance tire.

More Bead Lock Rims

The all-new Method Beadlock 108 is an evolution in wheel design that features the proven strength and durability of beadlock technology combined with Method's patented Bead Grip technology.
The 108 Beadlock has a 4,000 lb. load rating tested for use in the harshest conditions and toughest terrain.

Features & Benefits:

Solid A356 aluminum with T6 heat treatment construction

Tough 9 spoke design with debossed METHOD logo on spoke

Forged 6061 aluminum V5 beadlock ring

Patented Bead Grip® bead seats on inner lip

3/8” Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Snap-on center cap with embossed METHOD logo

Push through cap with embossed METHOD logo for 8 lug applications

Hub centric fitments for common applications

Super strong 4000 lbs. load ratings

4,000lb load rating tested for use on tires up to 40" in size

Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating

Specifications

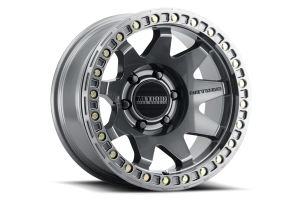

Finish – Gloss Titanium

Size – 17 x 9

Bolt Pattern – 5 x 5

Backspacing – 3.50in

Offset – -44mm

Hub Bore – 71.50mm

Max Load – 4000lbs

Weight – 35.9 lbs.

The all-new Method Beadlock 108 is an evolution in wheel design that features the proven strength and durability of beadlock technology combined with Method's patented Bead Grip technology.
The 108 Beadlock has a 4,000 lb. load rating tested for use in the harshest conditions and toughest terrain.

Features & Benefits:

Solid A356 aluminum with T6 heat treatment construction

Tough 9 spoke design with debossed METHOD logo on spoke

Forged 6061 aluminum V5 beadlock ring

Patented Bead Grip® bead seats on inner lip

3/8” Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Snap-on center cap with embossed METHOD logo

Push through cap with embossed METHOD logo for 8 lug applications

Hub centric fitments for common applications

Super strong 4000 lbs. load ratings

4,000lb load rating tested for use on tires up to 40" in size

Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating

Specifications

Finish – Matte Black

Size – 17 x 9

Bolt Pattern – 5 x 5

Backspacing – 3.50in

Offset – -44mm

Hub Bore – 71.50mm

Max Load – 4000lbs

Weight – 35.9 lbs.

Note: image shows 6 lug nuts, actual product contains 5.

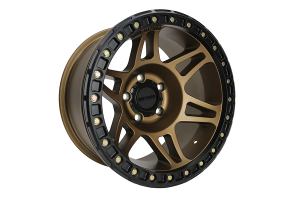

Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 Features:

Forged 6061 aluminum ring

53% thicker than original 101 beadlock ring to reduce deflection and increase overall durability

Excess material removed for weight reduction

Recessed hardware has 360 degree protection to eliminate sheared bolts on rocks or other obstacles on the trail

17% wider bead seat to accommodate larger tires

The Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 can Tackle the Toughest of Terrains The ultimate wheel for the Jeep Wrangler JK/JL and Jeep Gladiator JT is here. The Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 is built to conquer the most difficult trails with ease. It features a durable, lightweight design with a beadlock that keeps your tire on the wheel at any PSI. You can keep track of your pressure and adjust it accordingly with your TPMS systems that will still be able to be utilized with this wheel. The lightweight design keeps the additional weight to a minimum as to not cause any drag or sluggish movement. Although it is lightweight, this wheel has a 17% wider bead seat to that allows for accommodating larger tires. No-Frills Split Six-Spoke Face Design Each Method Racing Wheel MR106 Beadlock Bronze 17X9" 5X5 is optimized for the Jeep platform. The 106 Beadlock combines clean and modern styling with unrivaled off road functionality. The no-frills split six-spoke face design has concave for days thanks to a 3.5” backspace (-44mm offset) on a 17x9 wheel. Each wheel has a Method logo debossed into the wheel at the end of one of the spokes to let everyone know you have invested into a quality off-road wheel. The Beadlock 106 has the same beefy inner-lip design as our 101 Beadlock that has conquered everything from Baja to King of the Hammers.

Fitment:

Jeep Wrangler JK

Jeep Wrangler JL

Jeep Wrangler JT

Important Note: Image Shown is the 6 Lug Version

Optimized for the Jeep platform, the 106 Beadlock combines clean and modern styling with unrivaled off road functionality. The no-frills split six-spoke face design has concave for days thanks to a 3.5” backspace (-44mm offset) on a 17x9 wheel. A Method logo is debossed into the wheel at the end of one of the spokes. The 106 has the same beefy inner-lip design as our 101 Beadlock that has conquered everything from Baja to King of the Hammers.

Next up there’s the mighty v.3 ring. This new piece has some serious performance to back up the killer good looks. Here’s what you get:

Forged 6061 aluminum ring

53% thicker than original 101 beadlock ring to reduce deflection and increase overall durability

Excess material removed for weight reduction

Recessed hardware has 360 degree protection to eliminate sheared bolts on rocks or other obstacles on the trail

17% wider bead seat to accommodate larger tires



The Method Race Wheels 106 beadlock wheels are the perfect addition for those rock crawling, desert pre-running or anywhere your off-road vehicle can possibly go. Whether it’s for a Jeep Rubicon, Ford Raptor or Toyota Tacoma, these beadlock wheels will get you where you need to go fast and in style.

More Non-Beadlock and Beadlock options.



Features

Solid A356 aluminum with T6 heat treatment construction

Tough 6 windowed point design with debossed METHOD logos

Forged 6061 aluminum V.3 beadlock ring is 53% thicker and reduces deflection

Reinforced inner lip provides extreme strength and durability

Extra wide bead seat is 17% bigger to accommodate largest tires

Grade 8 zinc-plated beadlock hardware kit included

Redundant sets of threaded beadlock hardware holes machined into wheel

Recessed hardware has 360-degree protection to prevent bolt head shearing

Bolt-on center cap with embossed METHOD logo

Hub centric fitments for common applications

Super strong 3600 lbs. load rating



Specifications

Wheel Diameter (in): 17

Wheel Width: 9.0

Bolt Pattern: 5x5

Offset (mm): -44

Hub Bore (mm): 71.50

Backside Spacing (in): 3.50

Wheel Weight (LBS): 35.1

Max Load (LBS): 3600

Note: Images show 6 lug nuts, actual product contains 5.

Finish - Gold

Size - 17x9

Bolt Pattern - 5x5

Offset - -38mm

Backspacing - 3.50in

Hub Bore - 71.50mm

Weight - 33.7lbs

Load Rating - 3600lbs

Note: Image shows 6 lug nuts, product contains 5.

Method 105 Beadlock Matte Black Wheel Features:

MR105 Beadlock Series Wheel

True & functional bead lock ring

Matte black finish

T6 Heat Treated Solid A356 aluminum construction

-38mm Offset

Sold individually

MR105 Beadlock Series Off-Road Wheel Method Race Wheels has redefined the Method brand focusing on designing lighter, stronger, and faster performing wheels. Their 105 Beadlock Series Matte Black Wheel features a unique concave center with a forged black beadlock ring to provide impressive off-road capabilities and killer good looks to your overland warrior. This method wheel is also completed with a matte black finish for an aggressive appearance that will be sure to turn some heads. Likewise, a durable zinc coated is applied to enure this wheel is tough enough to stand up against the hazards of everyday driving applications. High-Quality One-Piece Construction Forged from solid A356 aluminum which is T6 heat-treated for additional strength, this one-piece wheel will be able to endure even the most extreme driving conditions. Moreover, the functional beadlock ring was incorporated to help keep the weight of the wheel down while providing impressive strength overall. This 17x9 wheel will be sure to take you further so you can explore more.

More Bead Lock Wheels

The Method Race MR105 Wheels certainly have an aggressive look with a black powder-coated forged 6061 outer ring and they are fabricated with Grade 8 Zinc plated mounting hardware. These wheels are TPMS compatible.

The bolt pattern is 5 on 5, and the offset is -38MM. These wheels are lightweight, strong, and will be able to host your preferred high performance tire.

More Bead Lock Rims
